Battery Repair Machine
>
24S 14A 12V/24V/48V/76V/96V/102V Battery Cell Discharge and Charger Repairing Equalizer Balancing Machine

24S 14A 12V/24V/48V/76V/96V/102V Battery Cell Discharge and Charger Repairing Equalizer Balancing Machine

Brand Name: Enerkey
Model Number: EK-FD14AS24CK
MOQ: 50pcs
Price: 320
Packaging Details: 44x41x34
Payment Terms: visa, mastercard, T/T, or online payment
Detail Information
Place of Origin:
China
Certification:
Yes
Weight:
12kg
Battery Type:
NCM / LFP/ LTO (Li-ion/Lifepo4/Lto)
Power Supply:
DC12V5A
Equilibrium Current:
0.1A-14A Adjustable
Battery Strings:
2S~24S
Voltage:
12V/24V/48V/76V/96V/102V
Dimensions:
L360 X W340 X H195mm
Function:
Charge And Discharge Balancing
Supply Ability:
5000pcs/month
Product Description

Product Description:

Product Description: 24S 14A Intelligent Charge and Discharge Equalizer (EK-FD14AS24CK)

The 24S 14A Intelligent Charge and Discharge Equalizer (EK-FD14AS24CK) is designed for use with a 2~24S battery pack that uses NCM / LFP/LTO (Li-ion/Lifepo4/Lto) technology, with a battery voltage between 2V and 4.5V. Please note that the actual current will depend on the input voltage, line resistance, temperature, and battery performance.

The intelligent equalizer supports automatic identification of the number of battery series. Additionally, it comes with built-in reverse connection protection, over-temperature protection, over-voltage (4.5V) protection, low-voltage (2V) protection, and alarm. Once the balancing process is complete, the equalizer will automatically stop and sound an alarm.

The device provides three types of balancing methods: discharge balance, constant voltage balance, and charge balance. Please note that if you wish to use the charge balance feature, you would need an external charger with adjustable non-auto-stop function.

The device comes with two modes: automatic identification mode, which is based on the lowest voltage string and will balance all cells to the voltage of the lowest voltage string, and manual input mode, which allows you to set the required balanced voltage for all cells.

The product also includes a 7-inch display that shows balanced voltage, balanced current, voltage per string, total voltage, maximum voltage, minimum voltage, average voltage, maximum voltage difference, number of battery strings, and temperature.



24S 14A 12V/24V/48V/76V/96V/102V Battery Cell Discharge and Charger Repairing Equalizer Balancing Machine 0

24S 14A 12V/24V/48V/76V/96V/102V Battery Cell Discharge and Charger Repairing Equalizer Balancing Machine 124S 14A 12V/24V/48V/76V/96V/102V Battery Cell Discharge and Charger Repairing Equalizer Balancing Machine 224S 14A 12V/24V/48V/76V/96V/102V Battery Cell Discharge and Charger Repairing Equalizer Balancing Machine 324S 14A 12V/24V/48V/76V/96V/102V Battery Cell Discharge and Charger Repairing Equalizer Balancing Machine 424S 14A 12V/24V/48V/76V/96V/102V Battery Cell Discharge and Charger Repairing Equalizer Balancing Machine 524S 14A 12V/24V/48V/76V/96V/102V Battery Cell Discharge and Charger Repairing Equalizer Balancing Machine 624S 14A 12V/24V/48V/76V/96V/102V Battery Cell Discharge and Charger Repairing Equalizer Balancing Machine 7

Technical Parameters:

Voltage Measurement

The voltage measure range is between 1V and 4.5V. The accuracy of voltage measure is ±(0.08%+0.06%FS).

Current Setting

The current setting range is from 0.1A to 14A, which can be adjusted according to your needs.

Discharge Balance

This product uses the PWM pulse discharge method for discharge balance.

Charging Assistance

An external charger is required for charging assistance. The charging port can withstand a voltage of ±DC130V.

Equilibrium Voltage

The equilibrium voltage is automatically identified.

Interface Voltage

The interface can withstand a voltage from B- to B24 without voltage, ranging from -120V to +120V.

Power Supply

The power supply of this product is DC12V5A.





Product name 24S 14A Intelligent Charge and Discharge Equalizer
Product model EK-FD14AS24CK
Product size L360*W340*H195mm
Product weight 8.6kg
Suitable battery type NCM / LFP/Lto(Li-ion/Lifepo4/Lto)
Suitable battery strings 2s-24s
Suitable battery voltage range 2.0V-4.5V
Equilibrium current 0.1A-14A(Can be adjust)
Equilibrium principle PWM pulse discharge method
LCD Display size 7inch
Equilibrium mode Discharge balance, constant voltage balance, charge balance
(needs an external charger with adjustable non-auto-stop function)
Equilibrium voltage Automatic Identification
Charging assistance Need to use an external charger, the charging port withstands voltage ±DC130V
Single channel interface withstand voltage -120V~ +120V
Chinese-English display conversion After turning on the device, press and hold the balance button for 10 seconds to switch between Chinese and English
Actual current The actual current is related to input voltage, wire resistance, temperature, and battery performance.
Voltage measurement range 1V~4.5V
Voltage measurement accuracy ±(0.08%+0.06%FS)
External power supply DC12V 5A
Interface pressure resistance -120V~ +120V
Automatically identify strings Support
Power failure detection function Support
Wrong wire protection function Support
Fault alarm function Support
Operating temperature 0℃ ~ 40℃
Operating humidity 20%~70%RH
Application Lithium battery PACK factory / electric vehicle repair shop / personal lithium battery DIY helper
Balanced voltage mode There are two modes: automatic identification mode and manual input mode. The automatic identification mode is based
on the lowest voltage string, and all are balanced to the voltage of the lowest voltage string (voltage is aligned
downward). The manual input mode is to set the required balanced voltage, and all are balanced to the set voltage value.
Optimum charger voltage Optimal charger voltage (V) = (balance voltage (V) * number of strings) + (number of strings * 0.01V); Charger current
is less than or equal to the balance current. Charging current is less than or equal to 10A. Exceeding 12A will damage
the device. When charging balance, please disconnect the charger immediately after balance is completed.
Display content Balanced voltage, balanced current, voltage per string, total voltage, maximum voltage, minimum voltage,
average voltage, maximum voltage difference, number of battery strings, temperature
Operation Instructions After power on, the default mode is automatic identification. After connecting the wire, press the
"Start" button or the "Equilibrium" button on the chassis to automatically identify and start balancing.
Manual input mode, press "Manual input" to enter manual input mode,Then press "Equilibrium
Voltage (V)" to open the numeric keypad and enter the balance voltage (2.0v-4.5v) to confirm,
then press the "Start" button or the "Equilibrium"button on the chassis to start balancing.
Press "Maximum Balance Current (A)" to enter the current setting, the range is 0A-14A.



Applications:

Lithium battery PACK factory / electric vehicle repair shop / personal lithium battery DIY helper / Electronic cars

/ Power storage system / Electronic tools etc.



24S 14A 12V/24V/48V/76V/96V/102V Battery Cell Discharge and Charger Repairing Equalizer Balancing Machine 824S 14A 12V/24V/48V/76V/96V/102V Battery Cell Discharge and Charger Repairing Equalizer Balancing Machine 924S 14A 12V/24V/48V/76V/96V/102V Battery Cell Discharge and Charger Repairing Equalizer Balancing Machine 10

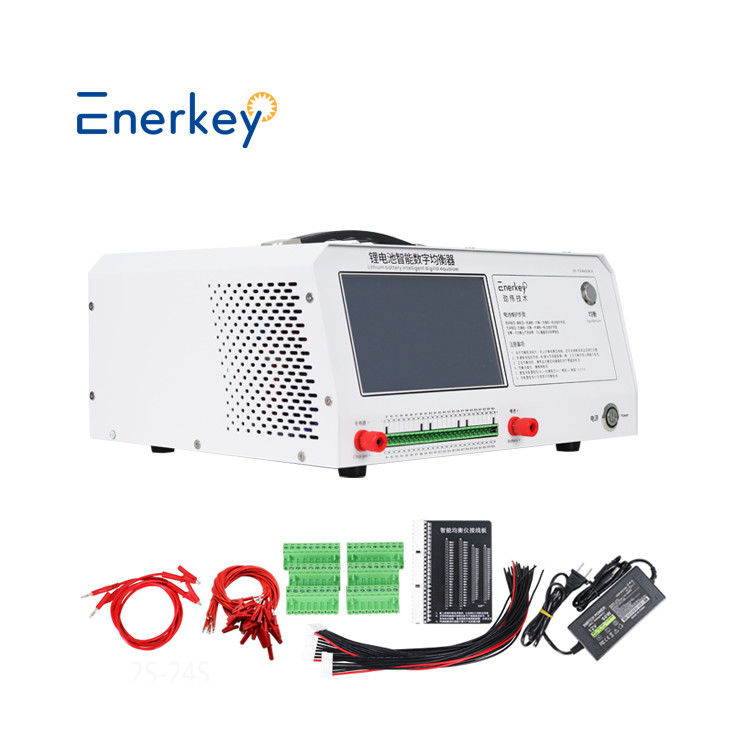

Packing and Shipping:

Intelligent Equalizer x1pcs
Wire Clip Cables x 1set
Wire Thermial x 1set
Power Cables x 1set
Adapter x 1pcs
Power Supply x 1pcs
Product Manual x1pcs
