The intelligent active balancing energy storage chip uses supercapacitor energy storage, which has higher balancing power, lower heat generation, greatly shortened balancing time, and the balancing current is not limited by the package heat dissipation. When the voltage difference of each battery reaches a certain value, the chip will immediately start the balancing process to transfer the energy of the battery with higher voltage to the battery with lower voltage, thereby maintaining the voltage balance of the entire battery pack. In standby mode, the chip consumes only very low standby current and has a balancing voltage accuracy of up to 1mV.



Improve the efficiency of battery packs: By ensuring that the charging state of all battery cells in the battery pack is consistent, it is possible to avoid damage to some batteries due to overcharging or overdischarging, thereby improving the efficiency of the entire battery pack.



Extend the service life of the battery pack: The life of the battery is closely related to the number of its charge and discharge cycles. Balancing technology can reduce the imbalance between battery cells and reduce the overcharge and discharge of a single battery cell, thereby extending the service life of the entire battery pack.





Technical Parameters

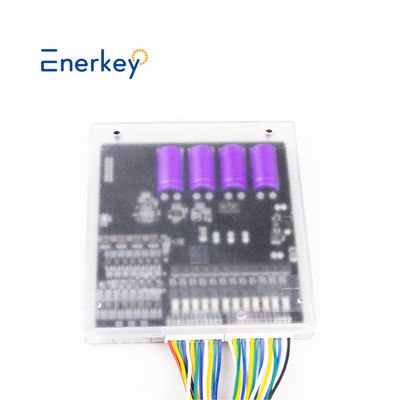

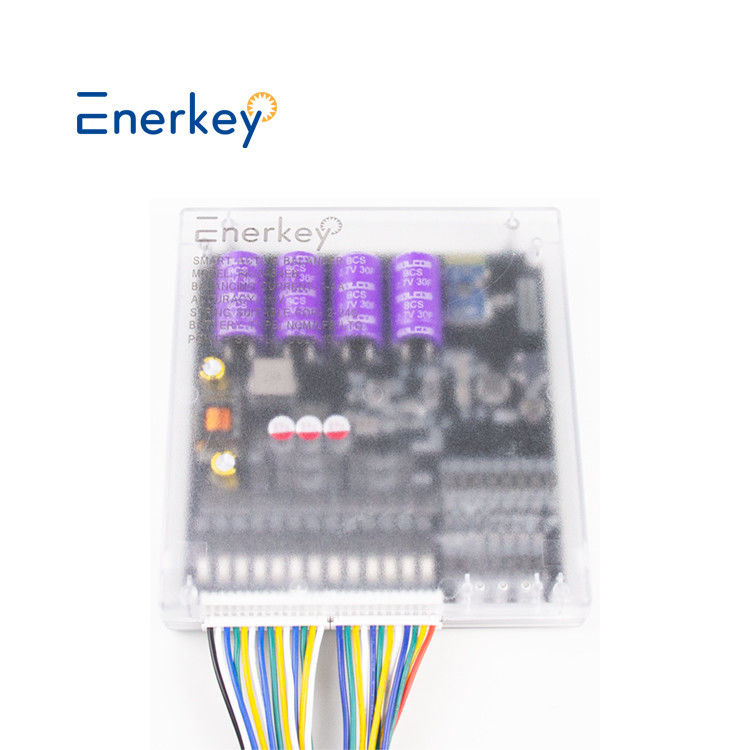

Product model	4A Smart Active Balancer for 2-24s (EK-24S4EB)
Supported battery type	NCM / LFP/ LTO(Li-ion/Lifepo4/Lto)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~4A
Whether an external power supply is required	When the total battery system voltage is below 25V, An external booster module or an external power supply is required.
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Wire cascading	Support
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	Electric toys, electric balance car/bicycle



Packing List





 Use Manual

Wiring Diagram

When used for battery packs with less than 24 string cells in series, the empty pin is suspended.

When used for battery packs with a total voltage of less than 25V, an external DC power supply is required

EK-24S4EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 32S as an example to describe how to install and connect cables:

Notice:
1.When used in cascade, there is at least one "energy exchange commonend" between every two equalizers. When welding, please note whetherthe connection here is correct.

2.During cascading use, please check whether the wiring is wrongrepeatedly.lf it cannot be used after connection, please contactafter-sales personnel to consult the corresponding cascade diagram.
