Energy storage BMS balancing technology mainly refers to the technology used in the battery management system BMS to maintain the consistency of the power of each single cell in the battery pack. Its basic principle is to monitor the charge and discharge status of the battery pack, as well as the voltage, current, temperature and other parameters of each single cell, and then adjust the battery cells during the charge and discharge process through the corresponding control strategy to reduce the imbalance between battery cells, so that the power of each single cell is kept as consistent as possible, thereby improving the performance and life of the entire energy storage system.



Battery balancing technology is crucial to the battery management system of electric vehicles. It helps improve the overall performance of the battery pack and ensure the efficient and safe operation of electric vehicles. As electric vehicle technology continues to advance, battery balancing technology will continue to develop to meet the needs of battery systems with higher energy density and longer life.



Intelligent balancing technology. Using cutting-edge electronic technology and algorithms, each single cell in the battery pack is precisely controlled and managed. Intelligent balancing technology mainly covers two methods: passive and active. Passive balancing focuses on adjusting the parameters during the charging and discharging process of the battery pack to achieve a balanced state. Active balancing does not require changing the state of other devices or components, is simple to implement, has low cost, and does not affect battery performance.





Technical Parameters

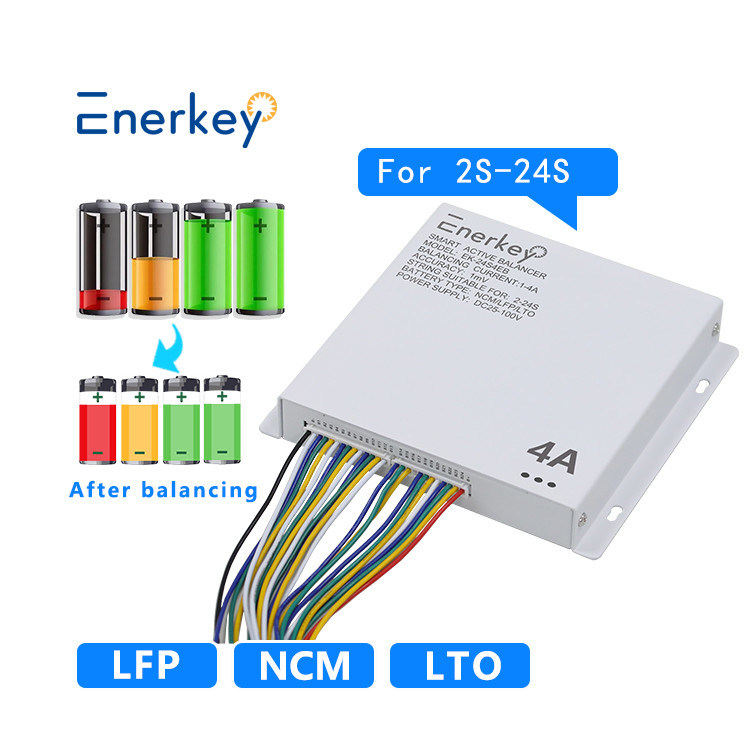

Product model	4A Smart Active Balancer for 2-24s (EK-24S4EB)
Supported battery type	NCM / LFP/ LTO(Li-ion/Lifepo4/Lto)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~4A
Whether an external power supply is required	When the total battery system voltage is below 25V, An external booster module or an external power supply is required.
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Wire cascading	Support
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	Electric toys, electric balance car/bicycle



Packing List





 Use Manual

Wiring Diagram

When used for battery packs with less than 24 string cells in series, the empty pin is suspended.

When used for battery packs with a total voltage of less than 25V, an external DC power supply is required

EK-24S4EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 32S as an example to describe how to install and connect cables:

Notice:
1.When used in cascade, there is at least one "energy exchange commonend" between every two equalizers. When welding, please note whetherthe connection here is correct.

2.During cascading use, please check whether the wiring is wrongrepeatedly.lf it cannot be used after connection, please contactafter-sales personnel to consult the corresponding cascade diagram.



 FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.
