Active balancing is a method of balancing by transferring electricity, which is highly efficient and has low losses.

Application scenarios: Choose the appropriate type of balancing instrument according to different application scenarios. For example, for scenarios with high efficiency requirements such as electric vehicles and solar energy storage systems, active balancing can be selected; while for cost-sensitive and low energy utilization requirements, passive balancing can be selected.



Battery pack scale: When the battery pack scale is large, the advantages of active balancing are more obvious, because there are more energy transfer paths and better balancing effects. When the battery pack scale is small, passive balancing may be more economical and practical.



Cost and benefit: When choosing a power battery balancing instrument, it is necessary to consider the cost and benefit comprehensively. Passive balancing has a lower cost, but a lower energy utilization rate.





Technical Parameters

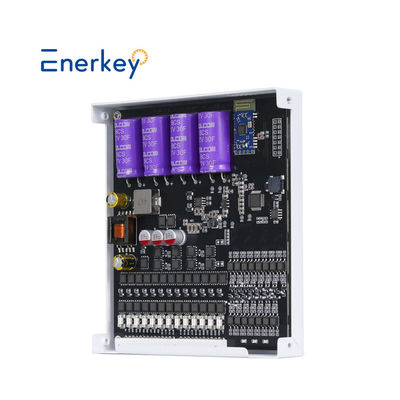

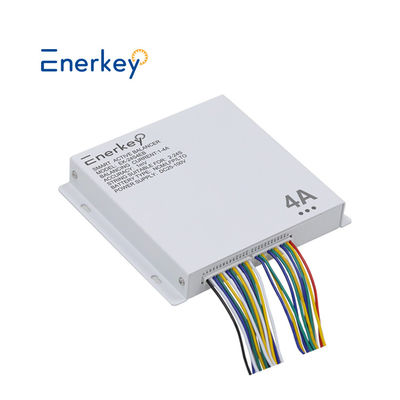

Product model	4A Smart Active Balancer for 2-24s (EK-24S4EB)
Supported battery type	NCM / LFP/ LTO(Li-ion/Lifepo4/Lto)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~4A
Whether an external power supply is required	When the total battery system voltage is below 25V, An external booster module or an external power supply is required.
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Wire cascading	Support
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	Electric toys, electric balance car/bicycle



Packing List





 Use Manual

Wiring Diagram

When used for battery packs with less than 24 string cells in series, the empty pin is suspended.

When used for battery packs with a total voltage of less than 25V, an external DC power supply is required

EK-24S4EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 32S as an example to describe how to install and connect cables:

Notice:
1.When used in cascade, there is at least one "energy exchange commonend" between every two equalizers. When welding, please note whetherthe connection here is correct.

2.During cascading use, please check whether the wiring is wrongrepeatedly.lf it cannot be used after connection, please contactafter-sales personnel to consult the corresponding cascade diagram.
