What kind of BMS is most needed for lithium batteries in application scenarios such as electric two wheeled vehicles, electric three wheeled vehicles, lead to lithium, electric wheelchairs, AGVs, robots, portable power supplies, etc?

The answer given by Enerkey BMS is: more reliable protection functions, more comprehensive intelligent functions, longer battery life, more reliable installation, and high automation. Comprehensive protection of lithium battery safety.

BMS is a very important component in electronic devices. It can monitor and protect the current and voltage in the circuit, ensuring that the circuit is not damaged by overcurrent and overvoltage. Common BMS include overcurrent protection board,

overvoltage protection board, charging protection board, etc. These BMS not only protect equipment, but also extend the lifespan of battery packs and improve battery safety.

The characteristics of smart active balance BMS:Compared to regular BMS, smart active balance BMS has higher protection performance. Smart active balance BMS can automatically adjust the voltage and current of the battery pack, achieving more precise protection.

It can continuously monitor the voltage and current of the battery pack during use. When voltage differences are found in the battery pack, it can achieve balanced protection of the battery pack by adjusting the distribution of voltage and current.







Technical Parameters

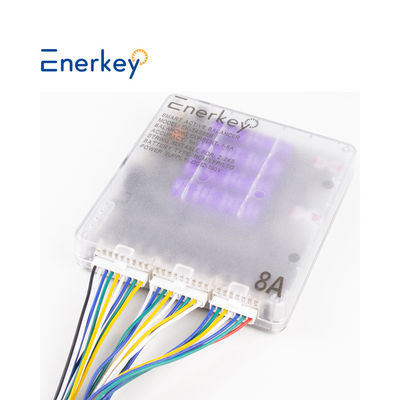

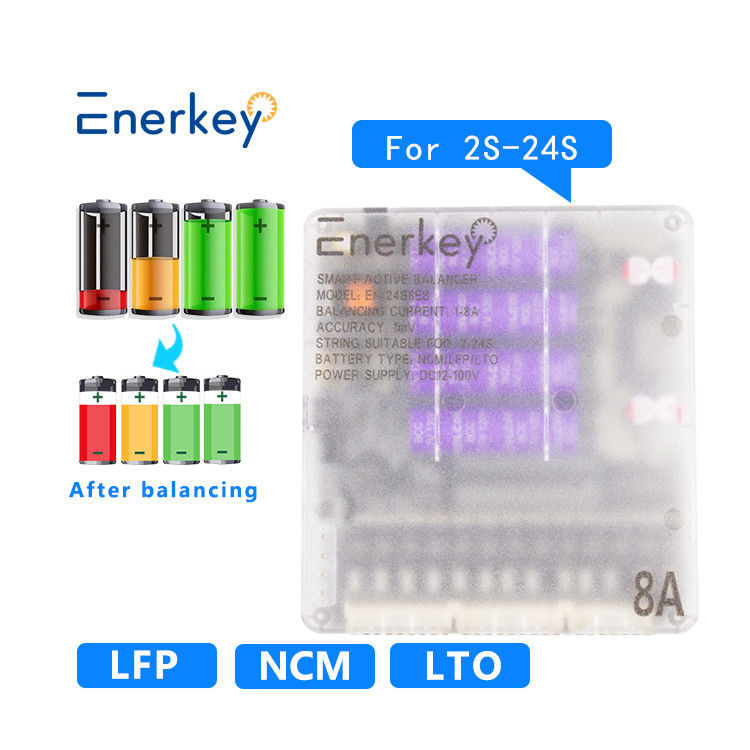

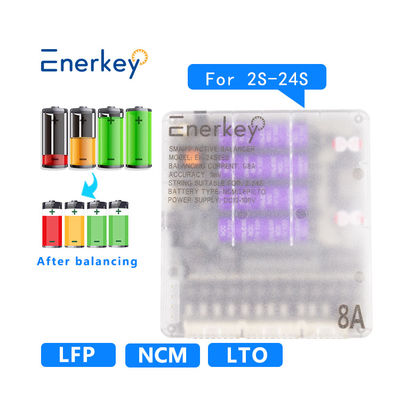

Product model	8A Smart Active Balancer for 2-24s (EK-24S8EB)
Supported battery type	NCM / LFP/ LTO(Li-ion/Lifepo4/Lto)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~8A
Whether an external power supply is required	Battery-operated(Accuracy:3mV) DC power supply(Accuracy:1mV)
External power supply	DC 12-120V
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	Electric toys, electric balance car/bicycle



Packing List

 Use Manual

Wiring Diagram

The use of battery power or DC adapter power supply, its wiring method is the same, only the following two differences:
1 Battery power supply support 4S-24S, voltage balancing accuracy ±3mV;
2 DC adapter power supply support 2S-24S, voltage balancing accuracy ±1mV. The following figure shows how to install and connect the 24S battery pack:

EK-24S10EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 36S as an example to describe how to install and connect cables:

Notice:
1.When used in cascade, there is at least one "energy exchange commonend" between every two equalizers. When welding, please note whetherthe connection here is correct.

2.During cascading use, please check whether the wiring is wrongrepeatedly.lf it cannot be used after connection, please contactafter-sales personnel to consult the corresponding cascade diagram.



 FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
