The SMART version allows communication (viewing, reading data and changing parameters) through various channels:



Bluetooth module – included – viewing and programming via mobile app (Android, IOS)

CAN- CAN cable required>USB

The system is supplied ready to work with standard parameters, corresponding to typical cells available on the market.



Using the communication methods described above, these parameters can be changed by the package designer to suit specific requirements, e.g. the balancing current or the process start threshold can be changed.



The balancer is connected to the package, just like the BMS. It is required to make two parallel leads from each cell, one for the BMS and the other for the balancer.



It comes complete with a cable for connecting individual cells and, in the case of the SMART version, with a BT module.



A new version of the application for BMS Smart is used for programming and parameter monitoring.



NOTE: it is necessary to purchase a balancer for a certain number of cells connected in series. For example, an 8S balancer is required for the LifePO4 8S pack.



For the balancer, the type of cells (LI-FePO4, LI-Ion, etc.) does not matter. Only the number of targets is important.





Technical Parameters

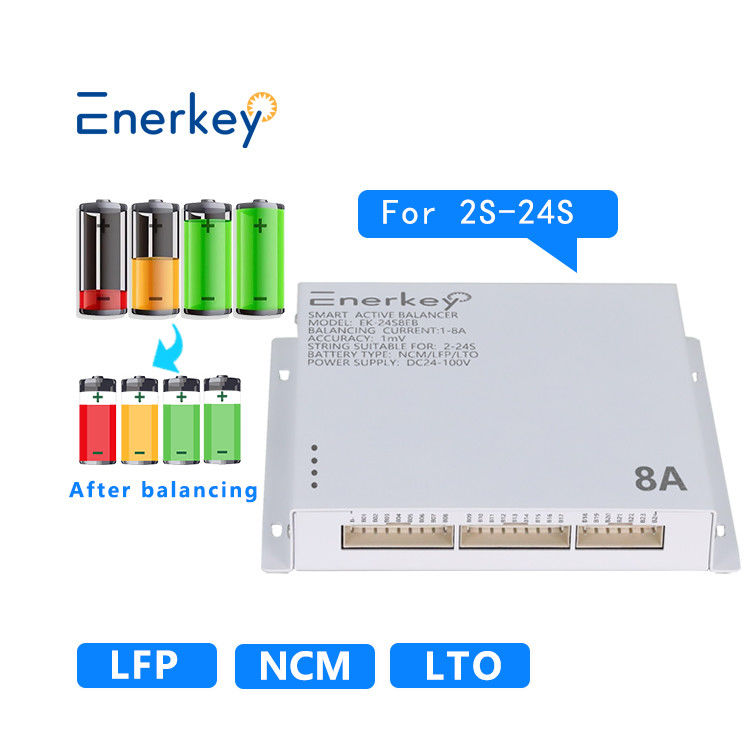

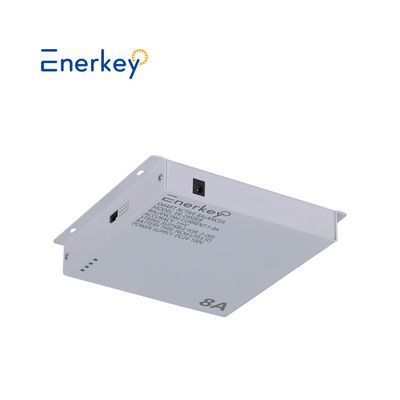

Product model	8A Smart Active Balancer for 2-24s (EK-24S8EB)
Supported battery type	NCM / LFP/ LTO(Li-ion/Lifepo4/Lto)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~8A
Whether an external power supply is required	Battery-operated(Accuracy:3mV) DC power supply(Accuracy:1mV)
External power supply	DC 12-120V
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	Electric toys, electric balance car/bicycle



Packing List

 Use Manual

Wiring Diagram

The use of battery power or DC adapter power supply, its wiring method is the same, only the following two differences:
1 Battery power supply support 4S-24S, voltage balancing accuracy ±3mV;
2 DC adapter power supply support 2S-24S, voltage balancing accuracy ±1mV. The following figure shows how to install and connect the 24S battery pack:

EK-24S10EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 36S as an example to describe how to install and connect cables:

Notice:
1.When used in cascade, there is at least one "energy exchange commonend" between every two equalizers. When welding, please note whetherthe connection here is correct.

2.During cascading use, please check whether the wiring is wrongrepeatedly.lf it cannot be used after connection, please contactafter-sales personnel to consult the corresponding cascade diagram.
