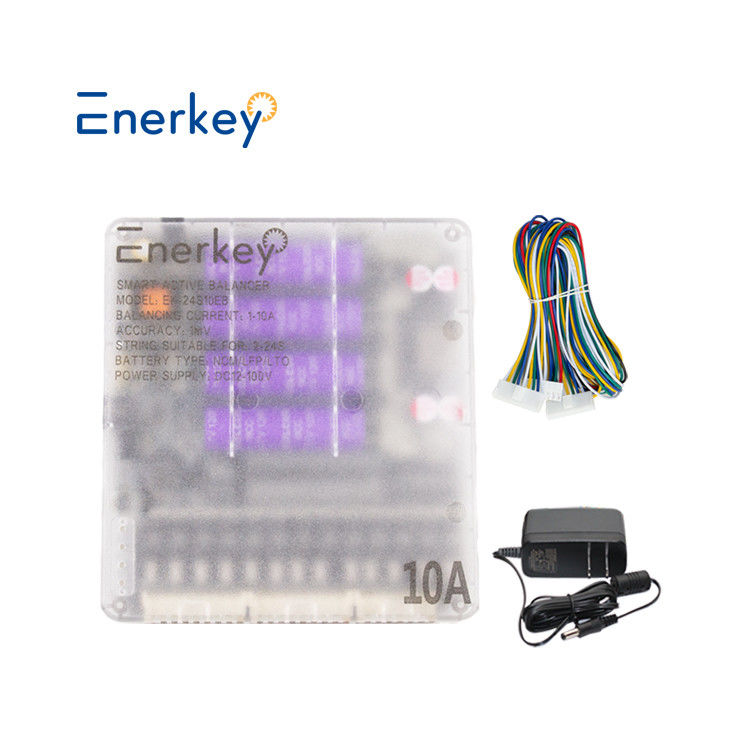

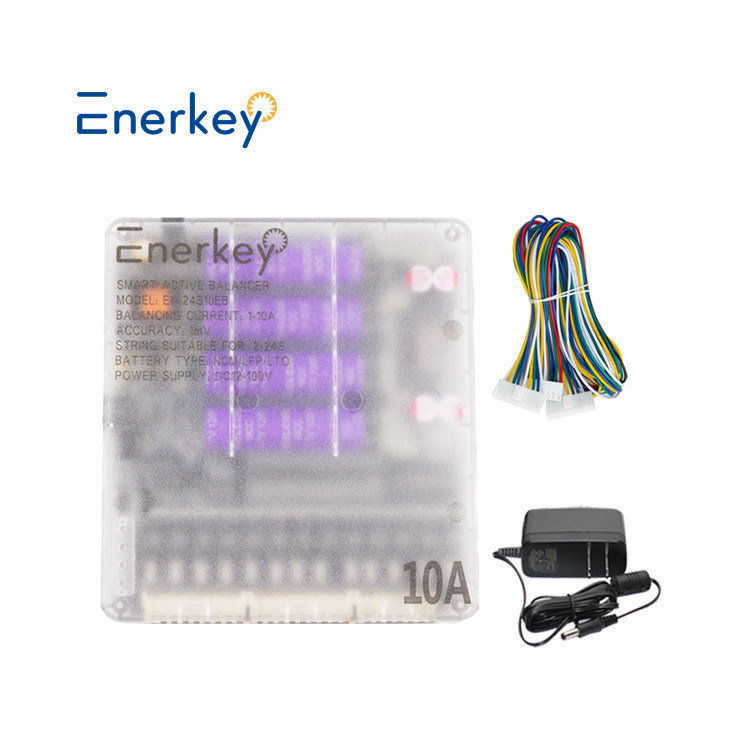

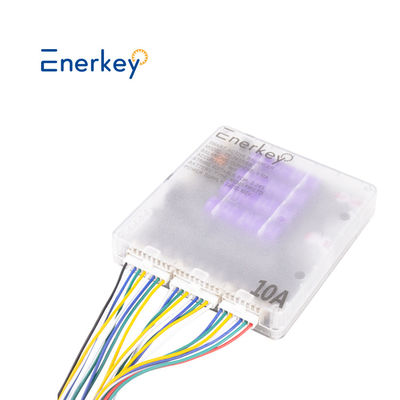

Accessories: Balance Cable+Power Supply

Support Cascade Connection



Special version

This is an equalizer, it could balance the voltage difference between battery series to make the batteries more durable, and the battery life would be longer,
It's not BMS, so it does not have the over-voltage, over-current and over discharge protection, but it can work with BMS together,
It's suitable for Li-ion and LiFePo4 batteries, could be used with any capacity of batteries,
Due to the balance current is fixed, so the balance time for large capacity of battery is slow, and for small capacity battery is fast



Product description

The product supports Android and IOS!App name "Enerkey"

Blue LED is BT status indicator: LED constantly ligh on---Connected; LED flashes---Disconnected

Red LED is fault statuse indicator: LED constantly ligh on---Internal fault; LED flashes---Battery detection failed

Green LED is working statuse indicator: LED constantly ligh on---Equalization finished; LED flashes---On Equalizing

Warning: If you do not have electronic foundation, do not buy it, lest product burn out cause economic loss!

Default suitable series: 2s~24S (It needs external DC power if the battery voltage is less than 20V-100V)
If you want to connect to 4s~9s, please add an additional DC power supply to work

Suitable: batteries: NCM/LFP/LTO all were compatible Power supply range suitable series

The total voltage of battery pack is above 30V

Undervoltage protection dormant voltage: Customize on APP: 1.5~4.2V

Static working current: Balance closed~10mA, balance open: 25mA Size(MM): L156*W144*T28

Working condition: 120~55℃

No need external power supply, based on the battery internal energy transfer to achieve the whole group balance





Technical Parameters

Product model	10A Smart Active Balancer for 2-24s (EK-24S10EB)
Supported battery type	NCM / LFP/ LTO(Li-ion/Lifepo4/Lto)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~10A
Whether an external power supply is required	External power supply 24V-100V(accuracy ±1mV) Battery powered (accuracy ±3mV)
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Wire cascading	Support
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	Electric toys, electric balance car/bicycle



Packing List





 Use Manual

Wiring Diagram

The use of battery power or DC adapter power supply, its wiring method is the same, only the following two differences:
1 Battery power supply support 4S-24S, voltage balancing accuracy ±3mV;
2 DC adapter power supply support 2S-24S, voltage balancing accuracy ±1mV. The following figure shows how to install and connect the 24S battery pack:

EK-24S10EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 36S as an example to describe how to install and connect cables:

Notice:
1.When used in cascade, there is at least one "energy exchange commonend" between every two equalizers. When welding, please note whetherthe connection here is correct.

2.During cascading use, please check whether the wiring is wrongrepeatedly.lf it cannot be used after connection, please contactafter-sales personnel to consult the corresponding cascade diagram.
