10A balanced current is not false

According to the actual measurement, the highest balancer current that can be achieved by the Lithium 10A active balancer module exceeds 10A. This means that 10A not only has no false standard, but also has a redundant design.

The so-called redundant design refers to adding redundant components or functions in a system or product to improve the reliability and fault tolerance of the system. If there is no product concept of demanding quality,

we will not design products like this. This cannot be done without the backing of technical prowess well above average.



Because of the redundancy in over-current performance, when the battery voltage difference is large and rapid balancing is required, the Enerkey 10A active balancing module can complete

the balancing at the fastest speed through the maximum balancing current, effectively maintaining the consistency of the battery. , improve battery performance, and prolong battery life.

It should be noted that the equalizing current is not continuously greater than or equal to 10A, but usually varies between 0-10A. The larger the voltage difference, the larger the balanced current;

the smaller the voltage difference, the smaller the balanced current. This is determined by the working mechanism of all energy transfer active balancer.





Technical Parameters

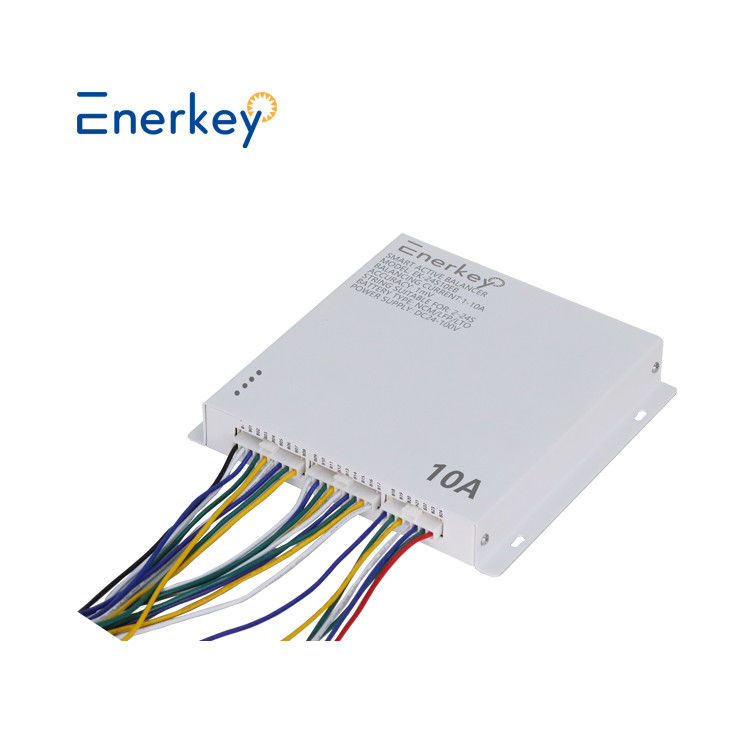

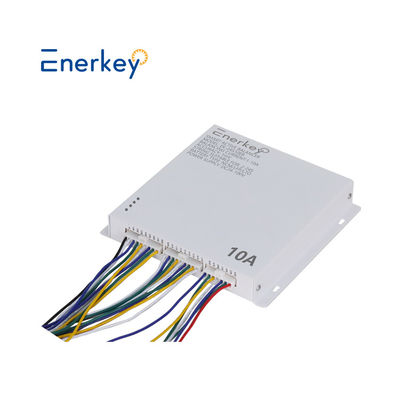

Product model	10A Smart Active Balancer for 2-24s (EK-24S10EB)
Supported battery type	NCM / LFP/ LTO(Li-ion/Lifepo4/Lto)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~10A
Whether an external power supply is required	External power supply 24V-100V(accuracy ±1mV) Battery powered (accuracy ±3mV)
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Wire cascading	Support
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	Electric toys, electric balance car/bicycle



Packing List





 Use Manual

Wiring Diagram

The use of battery power or DC adapter power supply, its wiring method is the same, only the following two differences:
1 Battery power supply support 4S-24S, voltage balancing accuracy ±3mV;
2 DC adapter power supply support 2S-24S, voltage balancing accuracy ±1mV. The following figure shows how to install and connect the 24S battery pack:

EK-24S10EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 36S as an example to describe how to install and connect cables:

Notice:
1.When used in cascade, there is at least one "energy exchange commonend" between every two equalizers. When welding, please note whetherthe connection here is correct.

2.During cascading use, please check whether the wiring is wrongrepeatedly.lf it cannot be used after connection, please contactafter-sales personnel to consult the corresponding cascade diagram.
