The core highlight of Enerkey's household storage products is the use of low-voltage 280Ah battery + DC/DC boost solution, equipped with a battery pack-level DC/DC module (BMS active balancing), and the balancing current can reach 5A,

which helps to increase the product life by 2-3 years, and users can flexibly expand capacity and power. In addition, the high-voltage stacked household storage battery is also equipped with a module-level DC/DC.

On the one hand, applying 280Ah low-voltage batteries to household storage and then boosting them through DC/DC modules reduces the cost of batteries,

slows down the rate of battery capacity decay, and increases the cycle life of household storage systems; on the other hand, if the battery needs to be expanded later,

adding a new Pack to the original household storage battery system can also be easily achieved. As the operation time of the energy storage system increases,

there will inevitably be a situation where the battery voltage and capacity differences are getting bigger and bigger. Battery decay is irreversible.

Faced with a series of problems such as capacity decay, life dive, safety discount, and energy efficiency reduction, the battery level is mainly upgraded through pre-lithiation,

high temperature resistance and other technologies, and the system level can add DC/DC modules. Enerkey Power believes that for energy storage systems, BMS active balancing can produce good results,

but the stability still needs to be improved. The equalizer/optimizer has stronger balancing capabilities, but there is still room for improvement in cost and stability. Only by finding an appropriate scenario can the greatest effect be achieved.





Technical Parameters

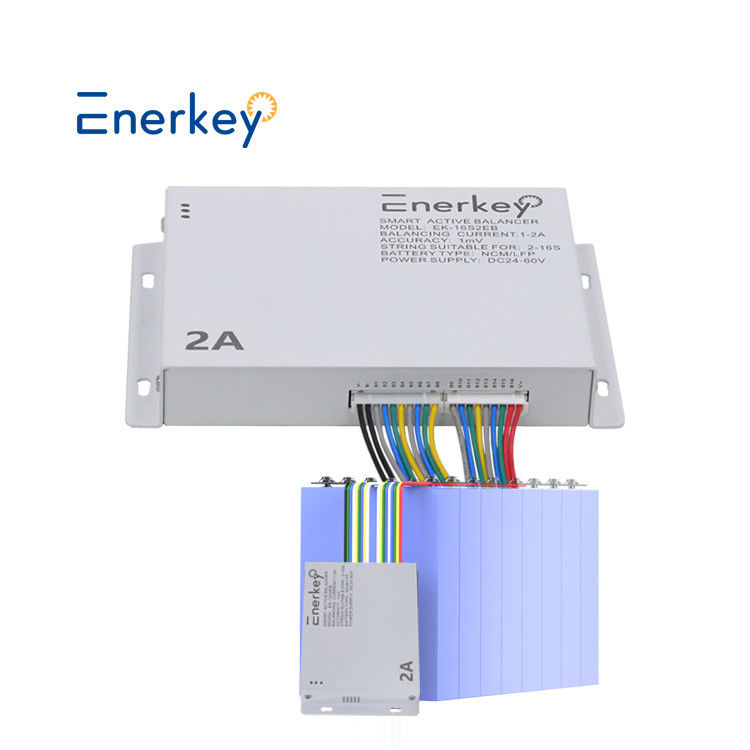

Product model	16S 2A Smart Active Balancer for 2-16s (EK-16S2EB)
Supported battery type	NCM / LFP(Li-ion/Lifepo4)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~2A
Whether an external power supply is required	When the total battery system voltage is below 24V, An external booster module or an external power supply is required.
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Wire cascading	Support
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	Electric toys, electric balance car/bicycle



Packing List





 Use Manual

Wiring Diagram

EK-16S2EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 32S as an example to describe how to install and connect cables:

Notice:
1.When used in cascade, there is at least one "energy exchange commonend" between every two equalizers. When welding, please note whetherthe connection here is correct.

2.During cascading use, please check whether the wiring is wrongrepeatedly.lf it cannot be used after connection, please contactafter-sales personnel to consult the corresponding cascade diagram.



 FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
