The balancing management system includes multiple modules, and the specific functions include data collection, battery pack operation analysis, abnormality monitoring, etc. In particular, in the balancing management of battery packs,

the data collection modules are connected through wireless communication to improve the real-time and response speed of information. The battery management module not only analyzes the operating information of the battery,

but also can quickly trigger the corresponding balancing strategy when abnormalities and imbalances are detected. This design shows the efforts of Boruis to integrate distributed and centralized balancing strategies in the power battery management system,

improve the flexibility and adaptability of the system, and reduce dependence on central control.

In the face of the current dynamic development of the electric vehicle industry, the safety and efficiency of batteries have become the focus of industry attention. By using complex technologies such as mutual information,

this balancing management system of Boruis can more sensitively capture the slight changes in battery operation, thereby realizing accurate dynamic adjustment of the safety factor,

so that the balancing strategy of each battery pack can be personalized, greatly enhancing the reliability of the power battery pack. According to market demand,

battery management systems have broad prospects in many application fields such as electric vehicles and energy storage systems.





Technical Parameters

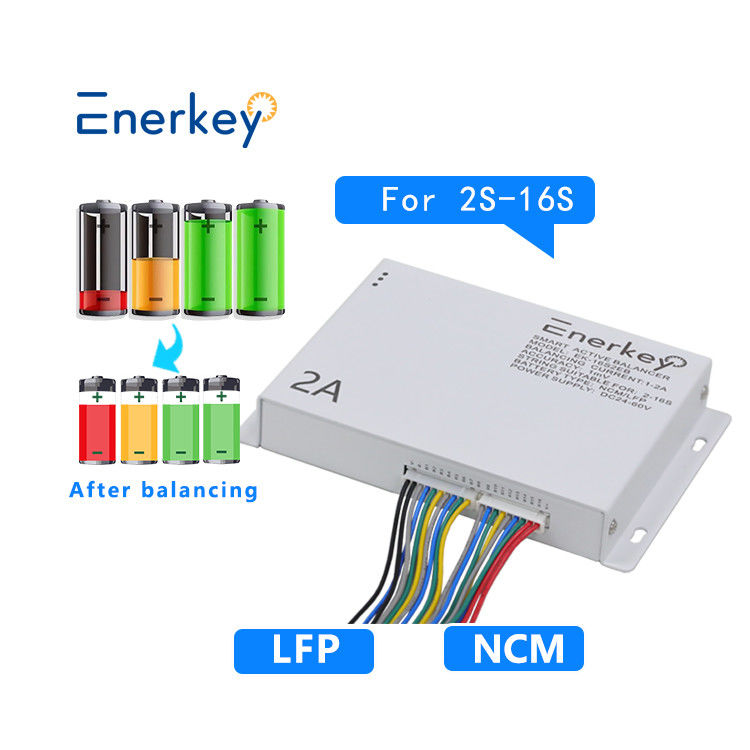

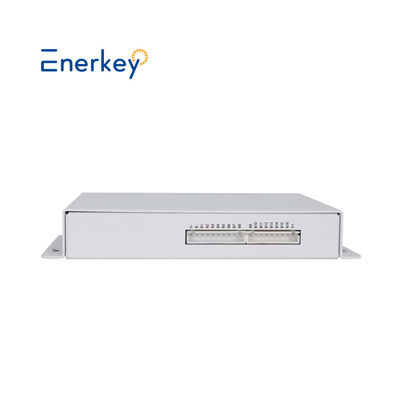

Product model	16S 2A Smart Active Balancer for 2-16s (EK-16S2EB)
Supported battery type	NCM / LFP(Li-ion/Lifepo4)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~2A
Whether an external power supply is required	When the total battery system voltage is below 24V, An external booster module or an external power supply is required.
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Wire cascading	Support
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	Electric toys, electric balance car/bicycle



Packing List





 Use Manual

Wiring Diagram

EK-16S2EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 32S as an example to describe how to install and connect cables:

Notice:
1.When used in cascade, there is at least one "energy exchange commonend" between every two equalizers. When welding, please note whetherthe connection here is correct.

2.During cascading use, please check whether the wiring is wrongrepeatedly.lf it cannot be used after connection, please contactafter-sales personnel to consult the corresponding cascade diagram.
