| Brand Name: | Enerkey |
| Model Number: | EK-BM3R4S80A |
| MOQ: | 5pieces |
| Price: | $6.89-$8.09 |
| Packaging Details: | Strong paper box +EVA Foam |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |

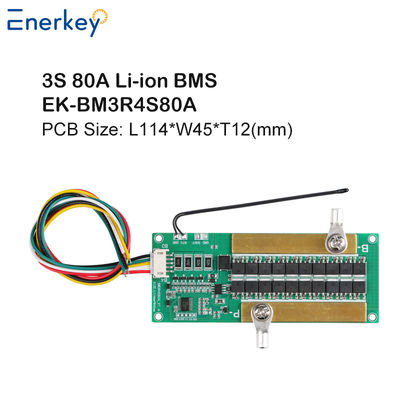

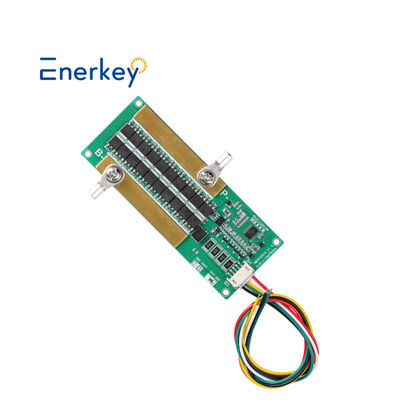

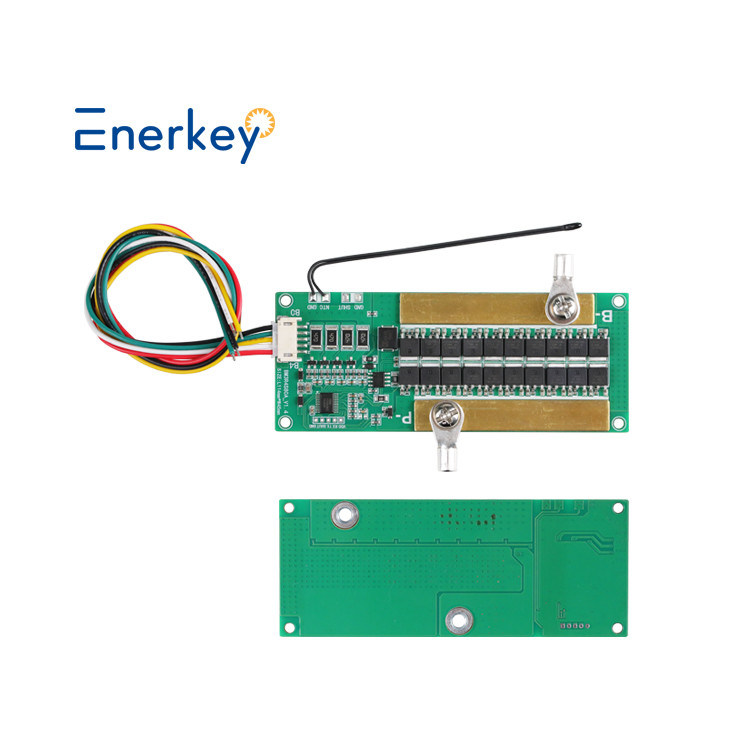

Enerkey Normal BMS 3S 12V 80A Lithium Battery PCB with Passive Balance Two NTC MOS For Li-ion/LiFePo4/lto
Battery management systems (BMS) are becoming increasingly complex as EV technology develops. It is expected that the future BMS will include cutting-edge capabilities like predictive analytics for greater performance optimization, increased safety protocols,
and improved integration with other vehicle systems. Using historical data and machine learning algorithms, predictive analytics make predictions about the future.
This can entail projecting past performance to forecast the battery’s future state-of-charge (SOC) or overall health,
in the context of a BMS. This would make it possible to manage the battery more proactively, thereby extending its lifespan and enhancing the efficiency of the EV.
Improved safety standards might include more sophisticated techniques for anticipating and avoiding potential battery issues.
This might require more complex algorithms for spotting irregularities that might point to a possible issue as well as more comprehensive monitoring of the battery's condition.
The BMS could communicate more directly with other EV systems, such as the motor controller or the onboard computer, to improve integration with other vehicle systems.
This may make it possible for the car to operate more smoothly, which will enhance its effectiveness, performance, and user experience.
| Item type | Parameters | |||||||||
| 1 | Parameter Overview | Product Model | EK-BM3R4S80A | |||||||
| Product Size(mm) | L114*W45*T12 | |||||||||
| Product Weight(kg) | 0.08 | |||||||||
| Product Material | FR-4 / Lead-free spray tin | |||||||||
| Applicable battery type | Lifepo4 | Li-ion | Lto | SIB | ||||||
| Applicable battery string | 3S / 4S | 3S / 4S | 3S / 4S | 3S / 4S | ||||||
| Rated discharge current | 80A | 80A | 80A | 80A | ||||||
| Peak starting current | 150A | 150A | 150A | 150A | ||||||
| Item type | Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
||
| 2 | Charging protection | Overvoltage protection voltage value | 3.65V/1S | 3.50V/1S | 4.25V/1S | 4.05V/1S | 2.85V/1S | 2.75V/1S | 3.95V/1S | 3.80V/1S |
| Balanced phase difference voltage value | Trigger voltage difference 30mV / trigger time 0.5S / balance time 10S cycle | |||||||||
| Balanced voltage value | 3.45V | 3.70V | 2.50V | 3.10V | ||||||
| Overcurrent value | 80A/2S, disconnect charger to recover | |||||||||
| Low temperature value | Charge over-temperature protection 60℃/2S / Release 55℃/2S | |||||||||
| Overtemperature value | Charging low temperature protection -5℃/2S / Release 0℃/2S | |||||||||
| 3 | Discharge protection | Undervoltage protection voltage value | 2.30V/1S | 2.70V/1S | 2.75V/1S | 3.0V/1S | 1.70V/1S | 1.80V/1S | 1.50V/1S | 2.00V/1S |
| ①Overcurrent protection value | 100A/2S, disconnect load or activate charging | |||||||||
| ②Overcurrent protection value | 150A/0.5S, disconnect load or activate charging | |||||||||
| Short circuit protection value | 500A/64uS, disconnect load or charge activated | |||||||||
| Low temperature value | Discharge over-temperature protection 65℃/2S, release 60℃/2S | |||||||||
| Overtemperature value | Discharge low temperature protection -20℃/2S, release -10℃/2S | |||||||||
| 4 | Others | Standby current consumption | 25uA | |||||||
| Motherboard lock voltage | / | |||||||||
Wiring precautions:
1. Installing the protective board requires a certain amount of technical electronic knowledge.
2. When wiring, first connect the B- wire at the soldering pad position to the total negative terminal of the battery (the B- wire should be soldered to a short and thick wire) and solder the wired terminal to the battery pack first, and then insert the protective plate.
3. The connection between the battery terminal B- and the protection board terminal B- should be short and thick, otherwise it will cause the protection board to charge and discharge in advance and malfunction.
4. You need to use thick wires when wiring P+/P-. Wires that are too thin and too long will burn the board!
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international standards certification.
* We can provide you with factory price, Welcome you to visit our factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ino and LTO batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and batches?
*Our minimum order quantity is 1 piece, ODM customization is available.
* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard certification.
* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.
|
