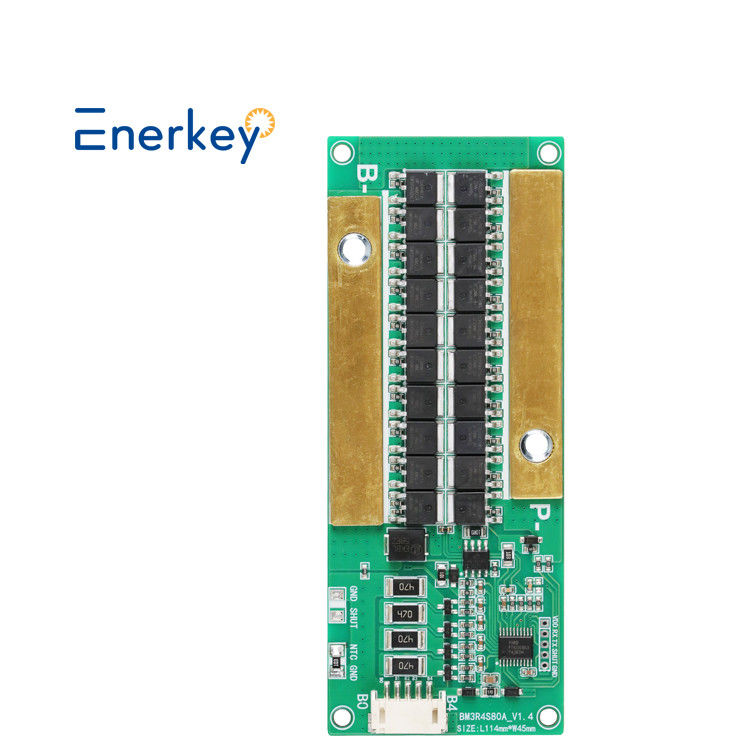

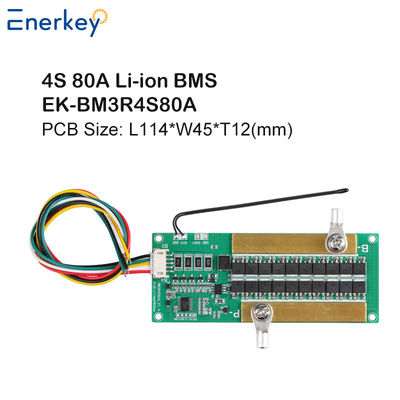

Enerkey 4S 80A BMS for 12V 11.6V Li-ion Battery Pack BMS Factory BMS 4S 3.2V 3.7V Battery Cell
How does BMS work?
(1) Monitor the battery
A BMS may monitor the state of the battery and it triggers a power module shutdown if the data is out of range.Monitoring the voltage of each cell is critical to the health of the battery,
and lithium-ion battery BMS usually provides each cell with an operating voltage window in charging and discharging to avoid battery degradation.Because lithium battery cells are very sensitive to overcharging and over-discharging,
and cells imbalance can lead to thermal runaway and cells degradation.It will decrease the efficiency and short the life span of the battery. Battery cells' operating voltage is between 2.5V and 4.2V depending on the lithium chemistry used.
Running the battery beyond this range will result in a significant reduction in battery life and may even damage the battery.
(2) Protect the battery
A Battery Management System (BMS) can monitor and control the charging and discharging process to ensure that the battery stays within its safe operating range.
Overcharge Protection/Overdischarge Protection
BMS estimates the battery's SOC based on voltage and current measurements. This allows the BMS to predict when the battery has reached its current limit and once the battery voltage is above/below the safe limit, the BMS will limit the discharge current or terminate the discharge.
Overvoltage Protection/Undervoltage Protection:
BMS prevents overvoltage/undervoltage by limiting the charging current or stopping the charging process. When the battery's voltage is higher/lower than the safe voltage, the BMS will shut down the charging circuit to prevent damage to the battery.
Temperature Protection
Overcharge and overdischarge can cause the battery temperature to rise or even cause thermal runaway. BMS helps reduce this risk by monitoring battery temperature and taking action when the temperature exceeds its safe operating range.
(3) Short Circuit Protection
The battery management system (BMS) continuously monitors voltage, current and other parameters to prevent short circuit. Faulty wiring will cause short circuit which poses a significant risk to both the battery and the connected device. And BMS can protect the battery from short circuit.
(4) Balance the battery
Unlike lead-acid, the voltage of a fully charged lithium battery rises quickly. If not controlled in time, it may cause battery degradation. There will be a big perform difference between battery cells which may cause the malfunction within the safe voltage range.
| Item type | Parameters | |||||||||
| 1 | Parameter Overview | Product Model | EK-BM3R4S80A | |||||||
| Product Size(mm) | L114*W45*T12 | |||||||||
| Product Weight(kg) | 0.08 | |||||||||
| Product Material | FR-4 / Lead-free spray tin | |||||||||
| Applicable battery type | Lifepo4 | Li-ion | Lto | SIB | ||||||
| Applicable battery string | 3S / 4S | 3S / 4S | 3S / 4S | 3S / 4S | ||||||
| Rated discharge current | 80A | 80A | 80A | 80A | ||||||
| Peak starting current | 150A | 150A | 150A | 150A | ||||||
| Item type | Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
||
| 2 | Charging protection | Overvoltage protection voltage value | 3.65V/1S | 3.50V/1S | 4.25V/1S | 4.05V/1S | 2.85V/1S | 2.75V/1S | 3.95V/1S | 3.80V/1S |
| Balanced phase difference voltage value | Trigger voltage difference 30mV / trigger time 0.5S / balance time 10S cycle | |||||||||
| Balanced voltage value | 3.45V | 3.70V | 2.50V | 3.10V | ||||||
| Overcurrent value | 80A/2S, disconnect charger to recover | |||||||||
| Low temperature value | Charge over-temperature protection 60℃/2S / Release 55℃/2S | |||||||||
| Overtemperature value | Charging low temperature protection -5℃/2S / Release 0℃/2S | |||||||||
| 3 | Discharge protection | Undervoltage protection voltage value | 2.30V/1S | 2.70V/1S | 2.75V/1S | 3.0V/1S | 1.70V/1S | 1.80V/1S | 1.50V/1S | 2.00V/1S |
| ①Overcurrent protection value | 100A/2S, disconnect load or activate charging | |||||||||
| ②Overcurrent protection value | 150A/0.5S, disconnect load or activate charging | |||||||||
| Short circuit protection value | 500A/64uS, disconnect load or charge activated | |||||||||
| Low temperature value | Discharge over-temperature protection 65℃/2S, release 60℃/2S | |||||||||
| Overtemperature value | Discharge low temperature protection -20℃/2S, release -10℃/2S | |||||||||
| 4 | Others | Standby current consumption | 25uA | |||||||
| Motherboard lock voltage | / | |||||||||
Wiring precautions:
1. Installing the protective board requires a certain amount of technical electronic knowledge.
2. When wiring, first connect the B- wire at the soldering pad position to the total negative terminal of the battery (the B- wire should be soldered to a short and thick wire) and solder the wired terminal to the battery pack first, and then insert the protective plate.
3. The connection between the battery terminal B- and the protection board terminal B- should be short and thick, otherwise it will cause the protection board to charge and discharge in advance and malfunction.
4. You need to use thick wires when wiring P+/P-. Wires that are too thin and too long will burn the board!
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international standards certification.
* We can provide you with factory price, Welcome you to visit our factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ino and LTO batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and batches?
*Our minimum order quantity is 1 piece, ODM customization is available.
* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard certification.
* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.
|
| Brand Name: | Enerkey |
| Model Number: | EK-BM3R4S80A |
| MOQ: | 5pieces |
| Price: | $6.89-$8.09 |
| Packaging Details: | Strong paper box +EVA Foam |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Enerkey 4S 80A BMS for 12V 11.6V Li-ion Battery Pack BMS Factory BMS 4S 3.2V 3.7V Battery Cell
How does BMS work?
(1) Monitor the battery
A BMS may monitor the state of the battery and it triggers a power module shutdown if the data is out of range.Monitoring the voltage of each cell is critical to the health of the battery,
and lithium-ion battery BMS usually provides each cell with an operating voltage window in charging and discharging to avoid battery degradation.Because lithium battery cells are very sensitive to overcharging and over-discharging,
and cells imbalance can lead to thermal runaway and cells degradation.It will decrease the efficiency and short the life span of the battery. Battery cells' operating voltage is between 2.5V and 4.2V depending on the lithium chemistry used.
Running the battery beyond this range will result in a significant reduction in battery life and may even damage the battery.
(2) Protect the battery
A Battery Management System (BMS) can monitor and control the charging and discharging process to ensure that the battery stays within its safe operating range.
Overcharge Protection/Overdischarge Protection
BMS estimates the battery's SOC based on voltage and current measurements. This allows the BMS to predict when the battery has reached its current limit and once the battery voltage is above/below the safe limit, the BMS will limit the discharge current or terminate the discharge.
Overvoltage Protection/Undervoltage Protection:
BMS prevents overvoltage/undervoltage by limiting the charging current or stopping the charging process. When the battery's voltage is higher/lower than the safe voltage, the BMS will shut down the charging circuit to prevent damage to the battery.
Temperature Protection
Overcharge and overdischarge can cause the battery temperature to rise or even cause thermal runaway. BMS helps reduce this risk by monitoring battery temperature and taking action when the temperature exceeds its safe operating range.
(3) Short Circuit Protection
The battery management system (BMS) continuously monitors voltage, current and other parameters to prevent short circuit. Faulty wiring will cause short circuit which poses a significant risk to both the battery and the connected device. And BMS can protect the battery from short circuit.
(4) Balance the battery
Unlike lead-acid, the voltage of a fully charged lithium battery rises quickly. If not controlled in time, it may cause battery degradation. There will be a big perform difference between battery cells which may cause the malfunction within the safe voltage range.
| Item type | Parameters | |||||||||
| 1 | Parameter Overview | Product Model | EK-BM3R4S80A | |||||||
| Product Size(mm) | L114*W45*T12 | |||||||||
| Product Weight(kg) | 0.08 | |||||||||
| Product Material | FR-4 / Lead-free spray tin | |||||||||
| Applicable battery type | Lifepo4 | Li-ion | Lto | SIB | ||||||
| Applicable battery string | 3S / 4S | 3S / 4S | 3S / 4S | 3S / 4S | ||||||
| Rated discharge current | 80A | 80A | 80A | 80A | ||||||
| Peak starting current | 150A | 150A | 150A | 150A | ||||||
| Item type | Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
||
| 2 | Charging protection | Overvoltage protection voltage value | 3.65V/1S | 3.50V/1S | 4.25V/1S | 4.05V/1S | 2.85V/1S | 2.75V/1S | 3.95V/1S | 3.80V/1S |
| Balanced phase difference voltage value | Trigger voltage difference 30mV / trigger time 0.5S / balance time 10S cycle | |||||||||
| Balanced voltage value | 3.45V | 3.70V | 2.50V | 3.10V | ||||||
| Overcurrent value | 80A/2S, disconnect charger to recover | |||||||||
| Low temperature value | Charge over-temperature protection 60℃/2S / Release 55℃/2S | |||||||||
| Overtemperature value | Charging low temperature protection -5℃/2S / Release 0℃/2S | |||||||||
| 3 | Discharge protection | Undervoltage protection voltage value | 2.30V/1S | 2.70V/1S | 2.75V/1S | 3.0V/1S | 1.70V/1S | 1.80V/1S | 1.50V/1S | 2.00V/1S |
| ①Overcurrent protection value | 100A/2S, disconnect load or activate charging | |||||||||
| ②Overcurrent protection value | 150A/0.5S, disconnect load or activate charging | |||||||||
| Short circuit protection value | 500A/64uS, disconnect load or charge activated | |||||||||
| Low temperature value | Discharge over-temperature protection 65℃/2S, release 60℃/2S | |||||||||
| Overtemperature value | Discharge low temperature protection -20℃/2S, release -10℃/2S | |||||||||
| 4 | Others | Standby current consumption | 25uA | |||||||
| Motherboard lock voltage | / | |||||||||
Wiring precautions:
1. Installing the protective board requires a certain amount of technical electronic knowledge.
2. When wiring, first connect the B- wire at the soldering pad position to the total negative terminal of the battery (the B- wire should be soldered to a short and thick wire) and solder the wired terminal to the battery pack first, and then insert the protective plate.
3. The connection between the battery terminal B- and the protection board terminal B- should be short and thick, otherwise it will cause the protection board to charge and discharge in advance and malfunction.
4. You need to use thick wires when wiring P+/P-. Wires that are too thin and too long will burn the board!
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international standards certification.
* We can provide you with factory price, Welcome you to visit our factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ino and LTO batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and batches?
*Our minimum order quantity is 1 piece, ODM customization is available.
* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard certification.
* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.
