| Brand Name: | Enerkey |
| Model Number: | EK-BM5R7S200A |
| MOQ: | 5pieces |
| Price: | $52.5-$59.5 |
| Packaging Details: | Strong paper box +EVA Foam |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |

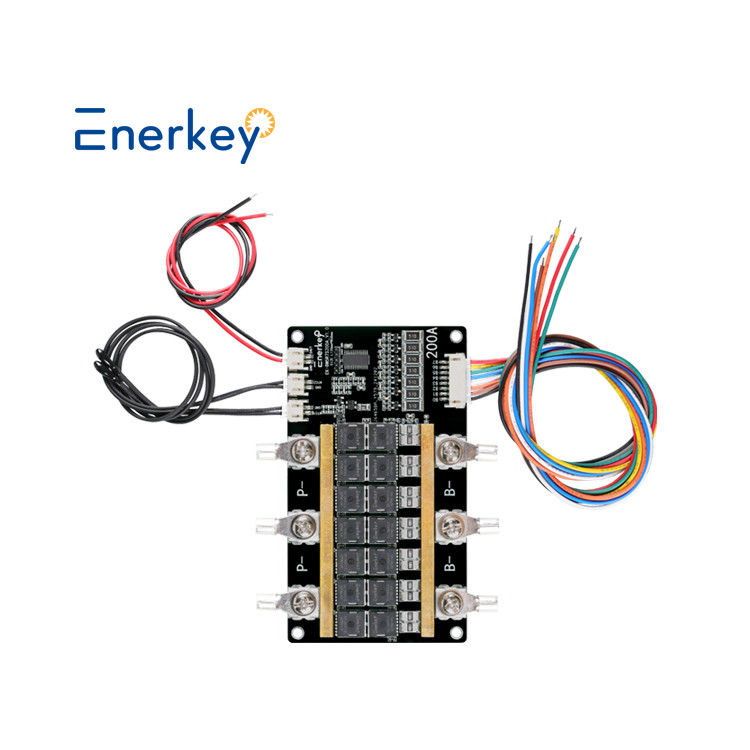

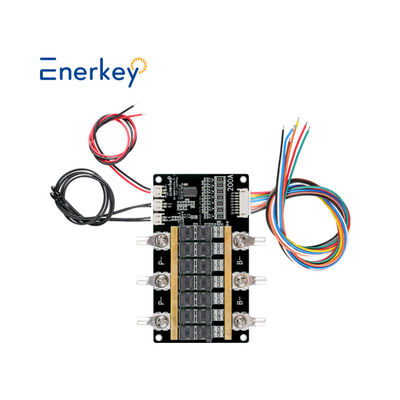

Enerkey Hardware BMS 7S 200A Peak 300A Li-ion Lithium Battery Pack with Balancing Function
Lithium iron phosphate batteries cannot be without protection boards. Lithium iron phosphate batteries have many superior characteristics such as high energy, wide operating temperature range, stable operating voltage, and long storage life. However, lithium iron phosphate batteries also have instability problems such as fire in harsh environments. Therefore, the protection board is very important for the safety protection of lithium iron phosphate batteries.
When choosing a lithium battery protection board, you need to see what battery cell is used, whether it is a ternary lithium battery or a lithium iron phosphate battery. These two types of lithium batteries cannot be mixed. Select the corresponding protection board according to the battery cell. After the type of protection board is selected, you need to choose the voltage of the protection board, that is, how many batteries are bought, how many V are connected in series, and how many batteries are used. For example, 16 batteries connected in series are 16 strings, so you must buy a protection board for 16 strings.
The maximum cut-off voltage for charging a single cell of a ternary lithium battery is 4.2V, the standard voltage is 3.7V, and the general minimum cut-off voltage for discharge is 3V. The maximum cut-off voltage for charging a lithium iron phosphate battery is 3.65V, the standard voltage is 3.2V, and the minimum cut-off voltage for discharge is 2.5V. How many V is the original battery of an electric vehicle? You can calculate it using the standard voltage of each cell of a lithium battery. For example, the original lead-acid battery of an electric vehicle is 48V. If you want to replace it with a lithium iron phosphate battery, the standard voltage of each lithium iron phosphate battery is 3.2V. 15 strings are 48V. In actual use, 16 strings are used, which is more than 3V higher than the original battery. This will not damage the controller and motor, but has many advantages. Many people use it this way.
In addition, the working current must be calculated through the motor power on the electric vehicle. The discharge current of the selected protection board must be greater than the working current of the electric vehicle. The capacity of the lithium battery cell used must also be used to select a protection board that can meet the charging current.
| Item type | Parameters | |||||||||

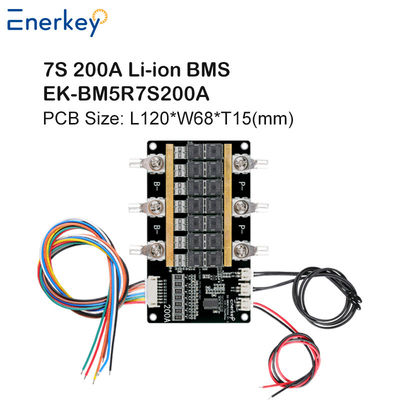

| 1 | Parameter Overview | Product Model | EK-BM5R7S200A | |||||||
| Product Size(mm) | L120*W68*T15 | |||||||||
| Product Weight(kg) | 0.12 | |||||||||
| Product Material | FR-4 / Lead-free spray tin | |||||||||
| Applicable battery type | Lifepo4 | Li-ion | Lto | SIB | ||||||
| Applicable battery string | 5S / 6S / 7S | 5S / 6S / 7S | 5S / 6S / 7S | 5S / 6S / 7S | ||||||
| Rated discharge current | 200A | 200A | 200A | 200A | ||||||
| Peak starting current | 600A | 600A | 600A | 600A | ||||||
| Item type | Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
Trigger (time) |
||
| 2 | Charging protection | Overvoltage protection voltage value | 3.65V/1S | 3.50V/1S | 4.25V/1S | 4.05V/1S | 2.85V/1S | 2.75V/1S | 3.95V/1S | 3.80V/1S |
| Balanced phase difference voltage value | Trigger voltage difference 30mV / trigger time 0.5S / balance time 10S cycle | |||||||||
| Balanced voltage value | 3.45V | 3.70V | 2.50V | 3.10V | ||||||
| Overcurrent value | 200A/2S, disconnect charger to recover | |||||||||
| Low temperature value | Charge over-temperature protection 60℃/2S / Release 55℃/2S | |||||||||
| Overtemperature value | Charging low temperature protection -5℃/2S / Release 0℃/2S | |||||||||
| 3 | Discharge protection | Undervoltage protection voltage value | 2.30V/1S | 2.70V/1S | 2.75V/1S | 3.0V/1S | 1.70V/1S | 1.80V/1S | 1.50V/1S | 2.00V/1S |
| ①Overcurrent protection value | 250A/2S, disconnect load or activate charging | |||||||||
| ②Overcurrent protection value | 500A/0.5S, disconnect load or activate charging | |||||||||
| Short circuit protection value | 1000A/128uS, disconnect load or charge activated | |||||||||
| Low temperature value | Discharge over-temperature protection 65℃/2S, release 60℃/2S | |||||||||
| Overtemperature value | Discharge low temperature protection -20℃/2S, release -10℃/2S | |||||||||
| 4 | Others | Standby current consumption | 25uA | |||||||
| Motherboard lock voltage | / | |||||||||
Wiring precautions:
1. Installing the protective board requires a certain amount of technical electronic knowledge.
2. When wiring, first connect the B- wire at the soldering pad position to the total negative terminal of the battery (the B- wire should be soldered to a short and thick wire) and solder the wired terminal to the battery pack first, and then insert the protective plate.
3. The connection between the battery terminal B- and the protection board terminal B- should be short and thick, otherwise it will cause the protection board to charge and discharge in advance and malfunction.
4. You need to use thick wires when wiring P+/P-. Wires that are too thin and too long will burn the board!
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international standards certification.
* We can provide you with factory price, Welcome you to visit our factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ino and LTO batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and batches?
*Our minimum order quantity is 1 piece, ODM customization is available.
* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard certification.
* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.
|
|
